Vanonpower.com – Balancing LiFePO4 battery cells manually involves charging individual cells or small groups in parallel to an identical voltage level using a low-current power supply to ensure the entire pack functions uniformly and safely. This process is essential when a Battery Management System (BMS) cannot compensate for large voltage discrepancies between cells in a series configuration.
Understanding the Need for Manual Balancing
LiFePO4 batteries are known for their long cycle life and stability, but they are not immune to voltage drift. Over time, internal resistance variations and inconsistent self-discharge rates can cause individual cells within a battery pack to fall out of sync. When one cell reaches its maximum voltage faster than others, the BMS will trigger an overvoltage protection cut-off, effectively limiting the capacity of the entire pack.
Manual balancing, often referred to as “top balancing,” is the most effective way to reset the baseline of a battery pack. While a BMS performs passive balancing by burning off excess energy through resistors, it is often too slow to handle significant imbalances. Manual intervention provides a direct approach to bringing all cells to the same state of charge, ensuring that the battery pack operates at its maximum potential.
Safety Precautions Before Starting
Before you begin, realize that you are working with high-capacity energy storage. A short circuit can lead to catastrophic failure, fire, or severe burns. Always wear safety glasses and remove conductive jewelry. Ensure your workspace is clean, well-lit, and free of metallic tools that could accidentally bridge terminals. Use a multimeter to verify every connection before applying power, and never leave the charging process unattended.
Equipment Required for Manual Balancing
To perform this task effectively, you will need a benchtop power supply that allows for adjustable constant voltage and constant current settings. You will also need high-quality busbars or copper wire, a reliable digital multimeter, and appropriate terminal hardware. Using a power supply with a current limit feature is critical, as it prevents the cells from being charged too aggressively, which could cause internal heating.
Step-by-Step Guide to Manual Top Balancing
Read also: LiFePO4 BMS Low-Temperature Cutoff: Why It Is Crucial
- Disassemble the battery pack by removing the busbars connecting the cells in series so that each cell is isolated.
- Measure the resting voltage of each cell using a high-precision multimeter to identify the most depleted and most charged cells.
- Connect your power supply in parallel to the cells if your equipment allows, or balance them individually by setting your benchtop power supply to 3.65V (the standard full charge voltage for LiFePO4).
- Set the current limit on your power supply to a safe level, typically 5A to 10A depending on the capacity of your cells, to prevent overheating during the process.
- Connect the positive and negative leads of the power supply to the terminals of the cell. Monitor the voltage until the current drops to a very low level (usually below 0.1A), indicating the cell is fully saturated.
- Repeat this process for every cell in the pack until all cells have reached exactly 3.65V.
- Allow the cells to sit for several hours after disconnecting the charger to ensure the voltage remains stable and does not drop significantly, which could indicate a faulty cell.
Common Mistakes to Avoid
One of the most frequent errors is attempting to balance cells while they are still connected in series. This will cause a short circuit through the busbars, which can be extremely dangerous. Always isolate the cells completely. Another mistake is using an unregulated power source. Never use a standard lead-acid battery charger, as these use charging profiles that are incompatible with LiFePO4 chemistry and can lead to overcharging and permanent damage.

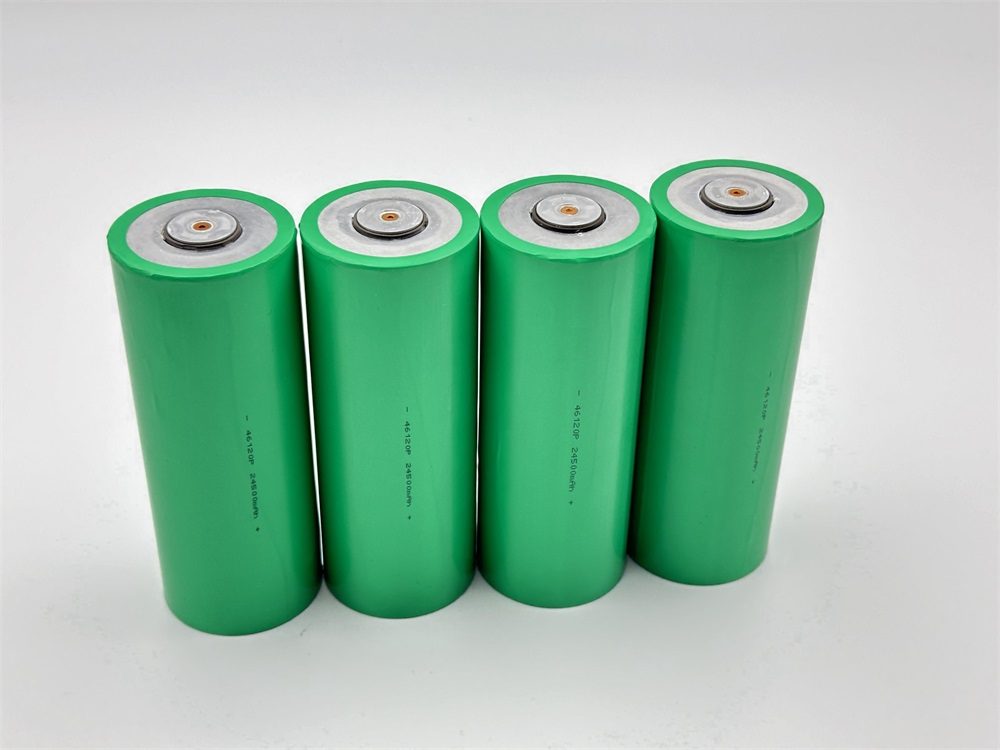

📷 Photo by neexgent.com
Comparison of Balancing Methods
| Method | Efficiency | Complexity | Best For |
|---|---|---|---|
| Passive BMS Balancing | Low | Low | Maintaining health during daily use |
| Active Balancing | High | Medium | Large packs with frequent drift |
| Manual Top Balancing | Very High | High | Initial setup or major imbalance recovery |
When to Seek Professional Help
If you notice that one cell consistently loses voltage much faster than the others after a full charge, you may have a “weak” cell with high internal resistance or an internal short. In this scenario, manual balancing will only provide a temporary fix. If the discrepancy returns within a few charge cycles, it is time to consider replacing the defective cell, as trying to force a weak cell to match the performance of healthy ones can compromise the safety of the entire battery bank.
Frequently Asked Questions
Q: How often should I manually balance my LiFePO4 cells?
A: You generally only need to perform manual balancing when you first assemble the pack or if you notice the BMS is consistently failing to balance the cells during normal operation.
Q: Is it dangerous to charge LiFePO4 cells to 3.65V?
A: 3.65V is the maximum manufacturer-recommended voltage for LiFePO4 cells. It is safe for balancing, but you should not exceed this voltage, as doing so can reduce the lifespan of the chemistry and pose a safety risk.
Q: Can I balance cells in parallel?
A: Yes, connecting cells in parallel is a common technique for balancing, as it allows them to naturally equalize voltage levels. However, ensure all cells are at a similar state of charge before connecting them in parallel to prevent high current surges between cells.
Final Considerations for Battery Health
Once your cells are balanced and reassembled, ensure your BMS is configured correctly to monitor the pack. A well-functioning BMS will manage minor drifts, preventing the need for frequent manual intervention. Always keep your battery terminals clean and tightened to the manufacturer’s specified torque settings, as loose connections can create heat and lead to voltage reading inaccuracies that mimic cell imbalance.
